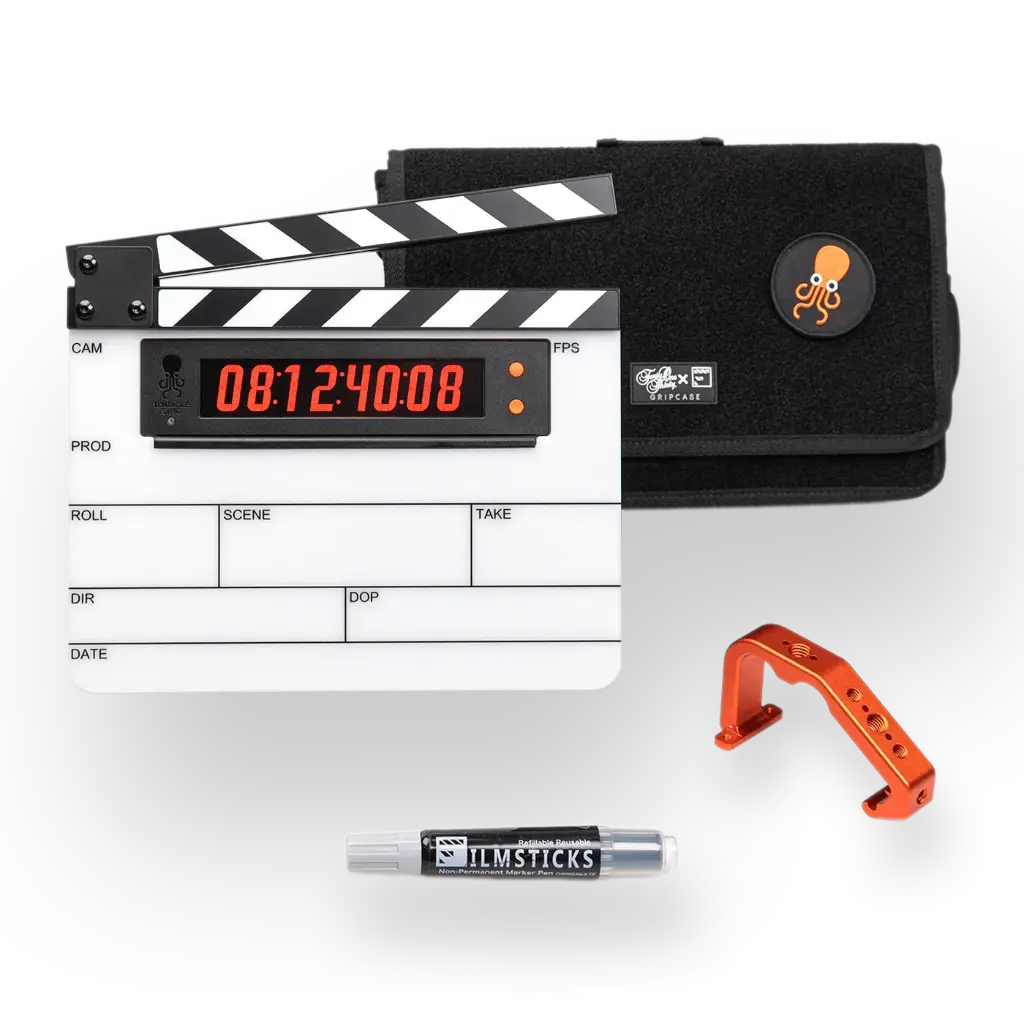

The TIMEBAR Timecode Slate Bundle combines the TIMEBAR Timecode Slate with essential accessories for on-set use. The set includes the TIMEBAR Timecode Slate, a lightweight orange aluminum handle, a sturdy gripcase cover for the slate and accessories with a cutout for the additional handle, and a black boardmarker.
The Timecode Slate integrates seamlessly into the Tentacle Sync ecosystem and features a highly legible OLED timecode display, sturdy clapper sticks, and a well-designed mounting system. The TIMEBAR display can be quickly detached and used separately as a timer, stopwatch, or text display—controlled via the Tentacle Setup app.
The ergonomic handle makes handling easier and offers additional mounting options for the clapperboard and any accessories. The case ensures safe transport and provides reliable protection against impacts, dust, and scratches during everyday production use.

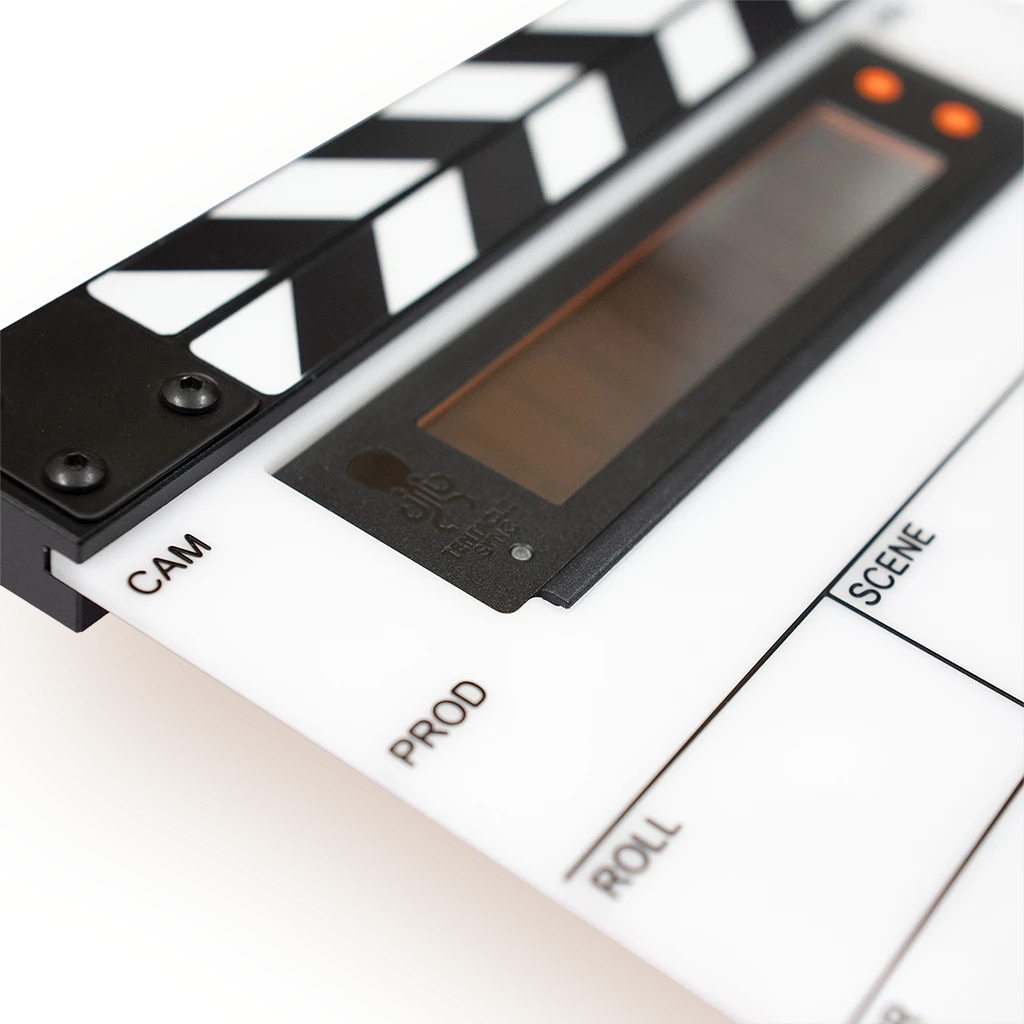

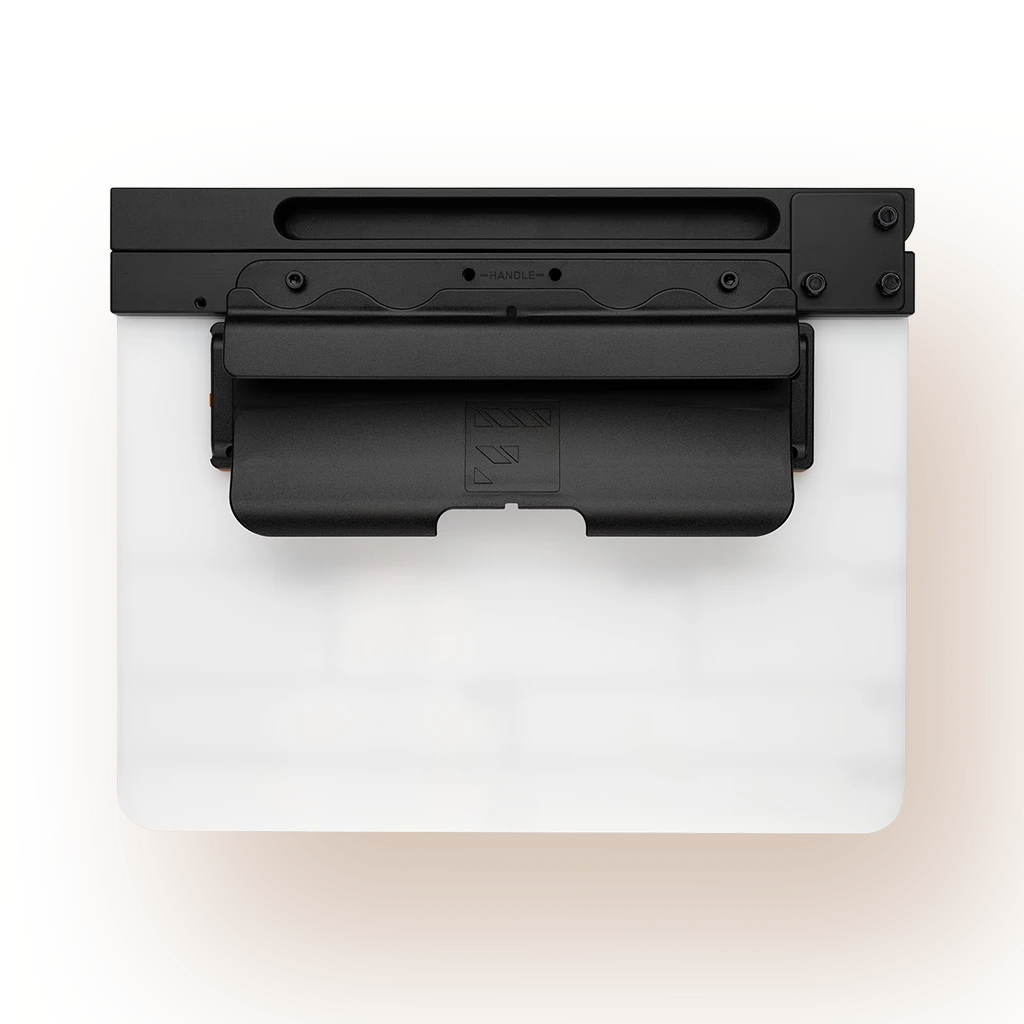

TIMEBAR Timecode-Slate
Timecode In/Out:
| 3.5 mm Jack
|
USB Connection:
| USB-C (USB 2.0) |
USB Operating Modes:
| Charging, Firmware Update
|
Bluetooth®: | 5.2 (Low Energy) |
Remote Control & Monitoring:
| Tentacle Setup App (iOS/Android) |
Synchronization:
| Via Bluetooth® or Jam-Sync via Cable
|
LTC Timecode: | According to SMPTE-12M Standard
|
Frame Rates: | 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF and 30 (60) fps |
Accuracy:
| High Precision TCXO (0.2 ppm) / Accuracy less than 1 Frame Drift in 24 hours (-30°C to +85°C)
|
Power Source: | Built-in rechargeable Lithium Polymer Battery |
Battery Capacity: | 2200 mAh |
Operating Time Slate Mode | Minimum 2 weeks |
Operating Time Continuous Mode: | 6 hours (highest brightness) to 80 hours (lowest brightness) |
Battery Charging Time: | Standard Charge: 4-5 hours, Fast Charge: 2 hours |
| Timecode: | Timecode / User Bits / Custom Text |
Timer: | Countdown of three preset values (set different values in Setup App) |
Stopwatch: | Running Time (keeps running in the background while operating in other modes) |
Message: | Text of three preset messages (edit messages in Setup App) |
Slate: | Use when TIMEBAR is assembled into Timecode Slate to hold Timecode and other information after the clap |
Dimensions: | 280 x 226 x 43 mm / 11 x 8.9 x 1.7 inches |
Weight: | 786 g / 27.7 oz (including battery) |
Mounting: | Handle with several threads (sold separately) |

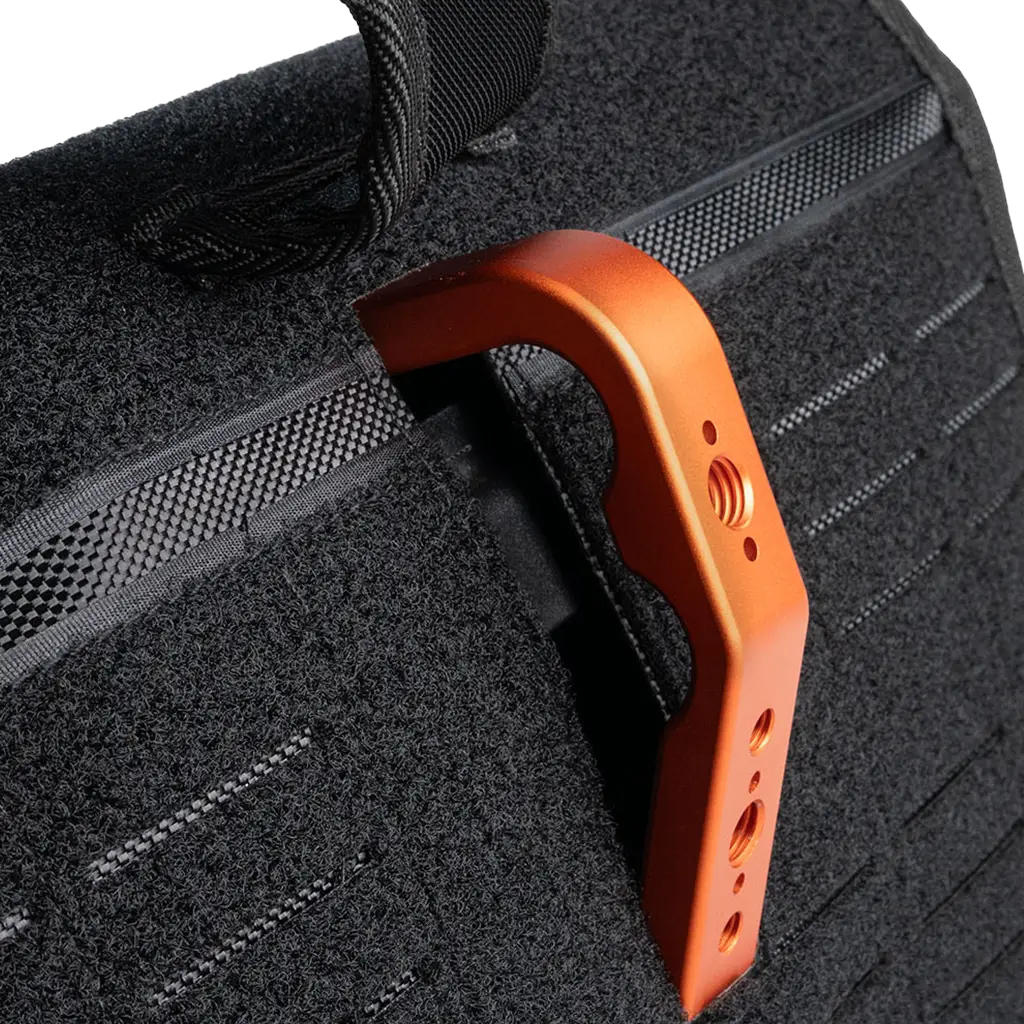

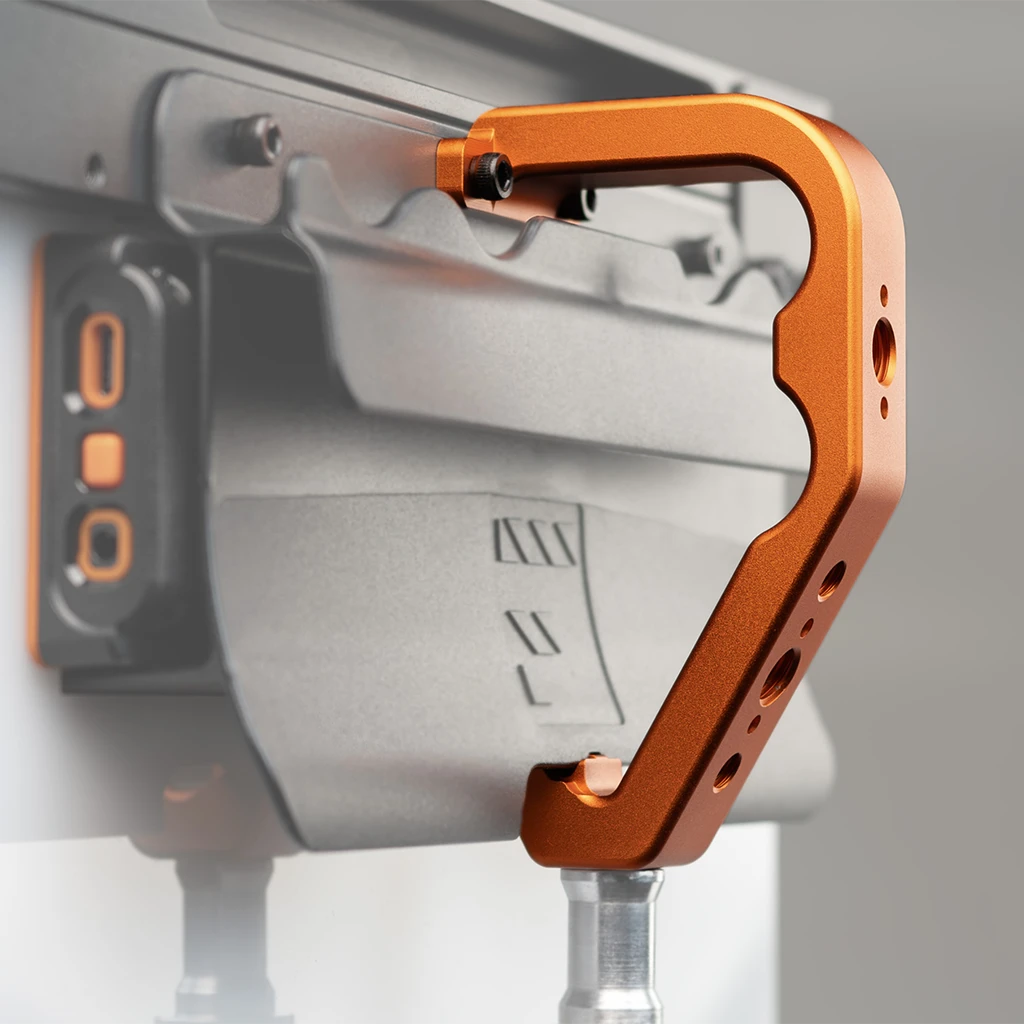

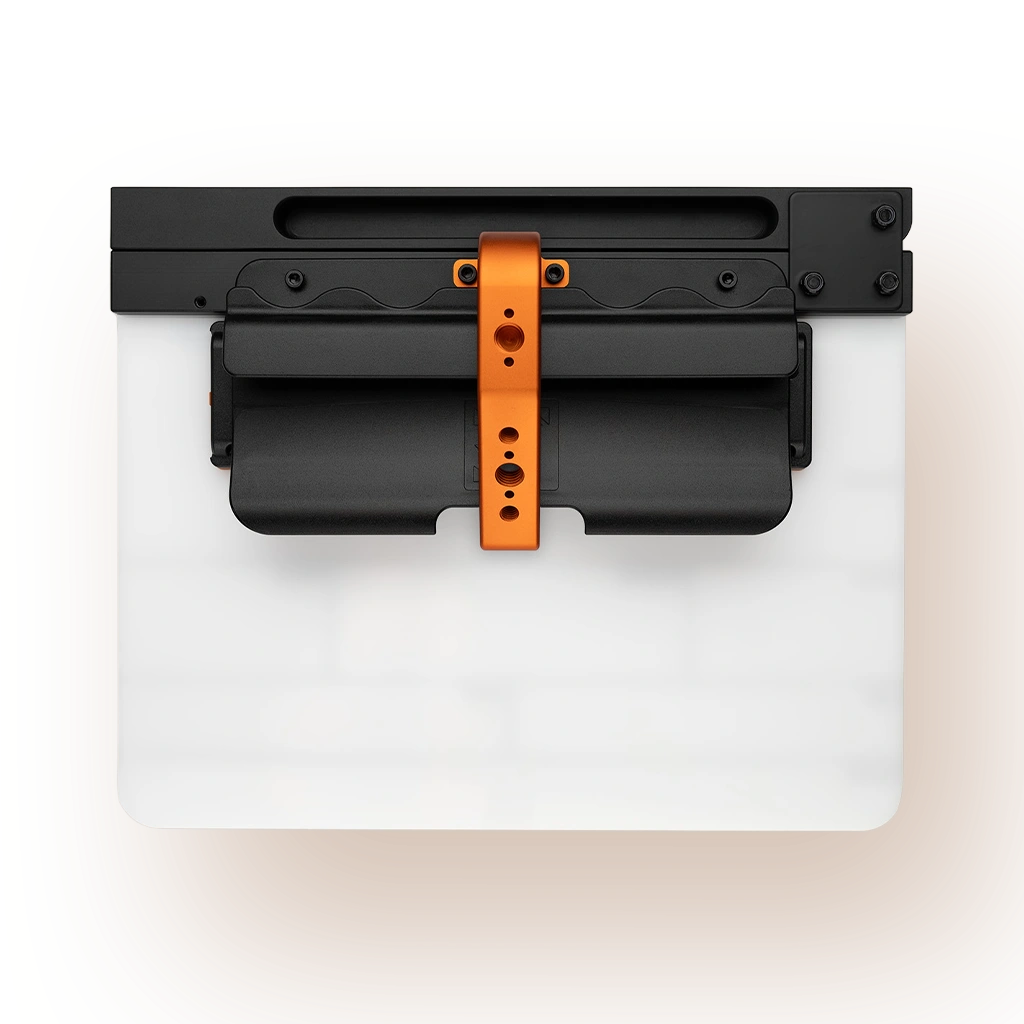

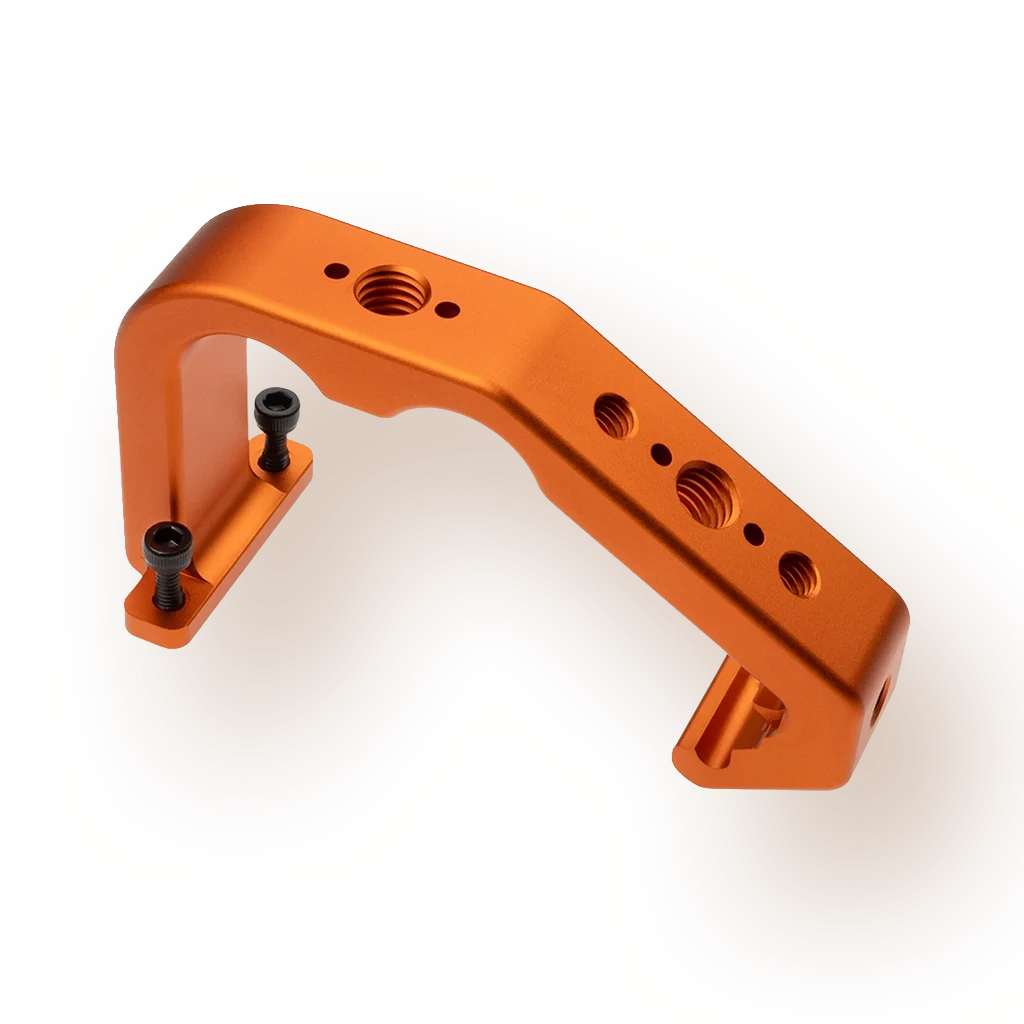

Handle for TIMEBAR Timecode Slate
Material: | Orange anodized aluminum |
1/4“ threaded holes: | 3 |
3/8“ threaded holes: | 2 |
Weight: | 83 g / 2.92 oz |

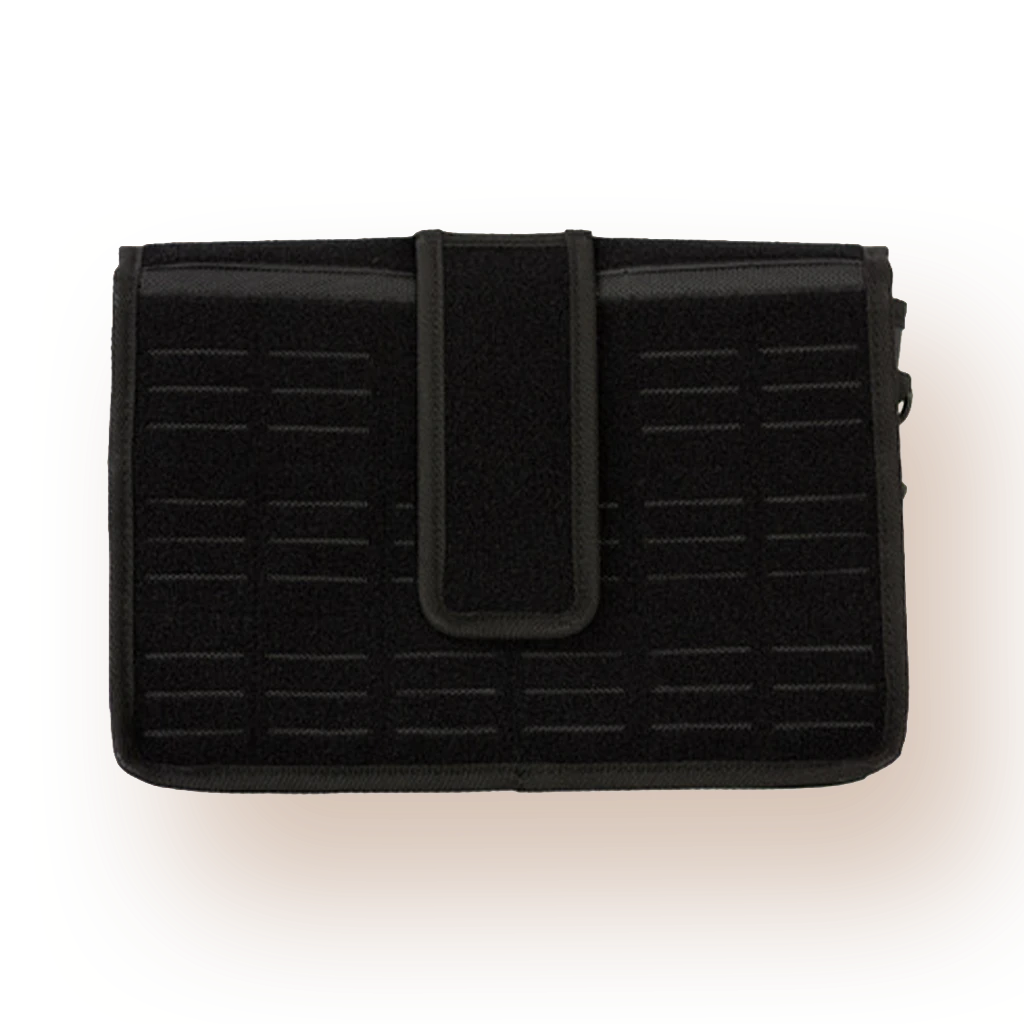

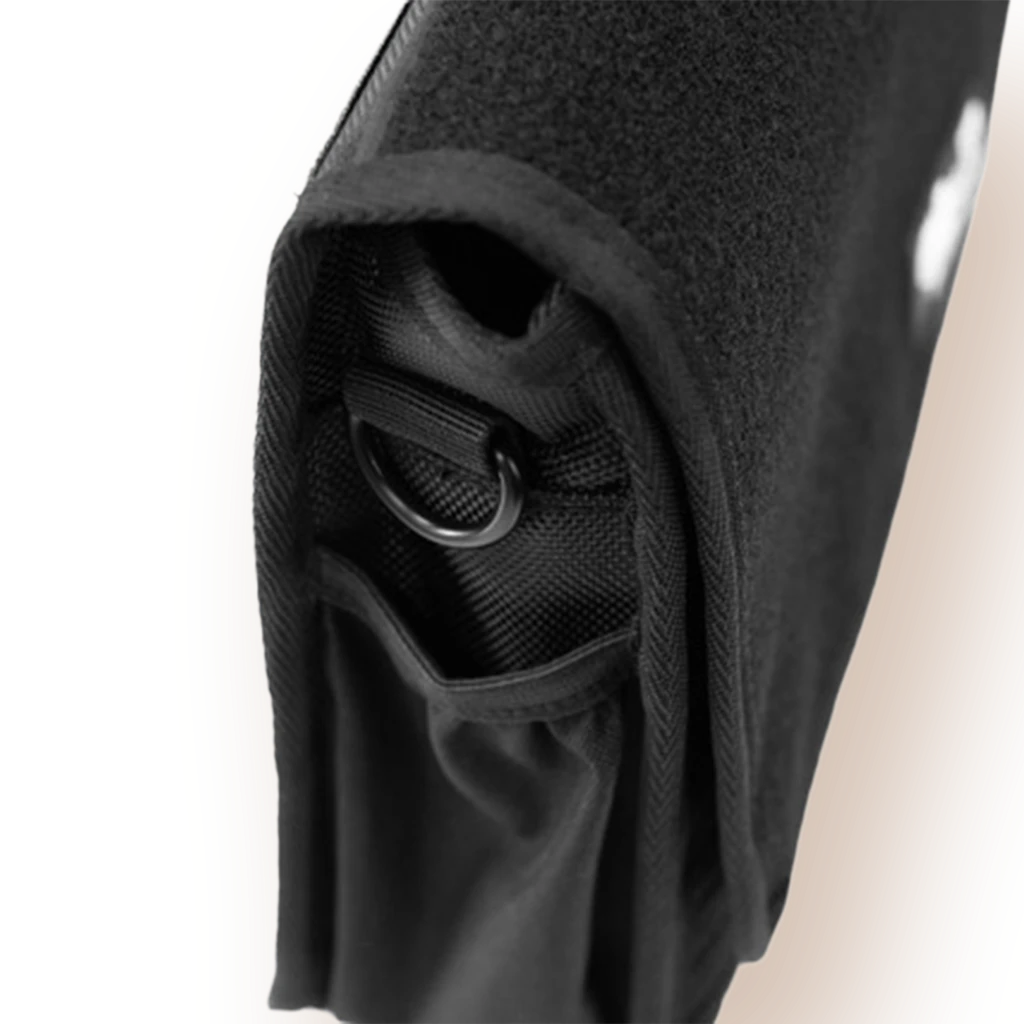

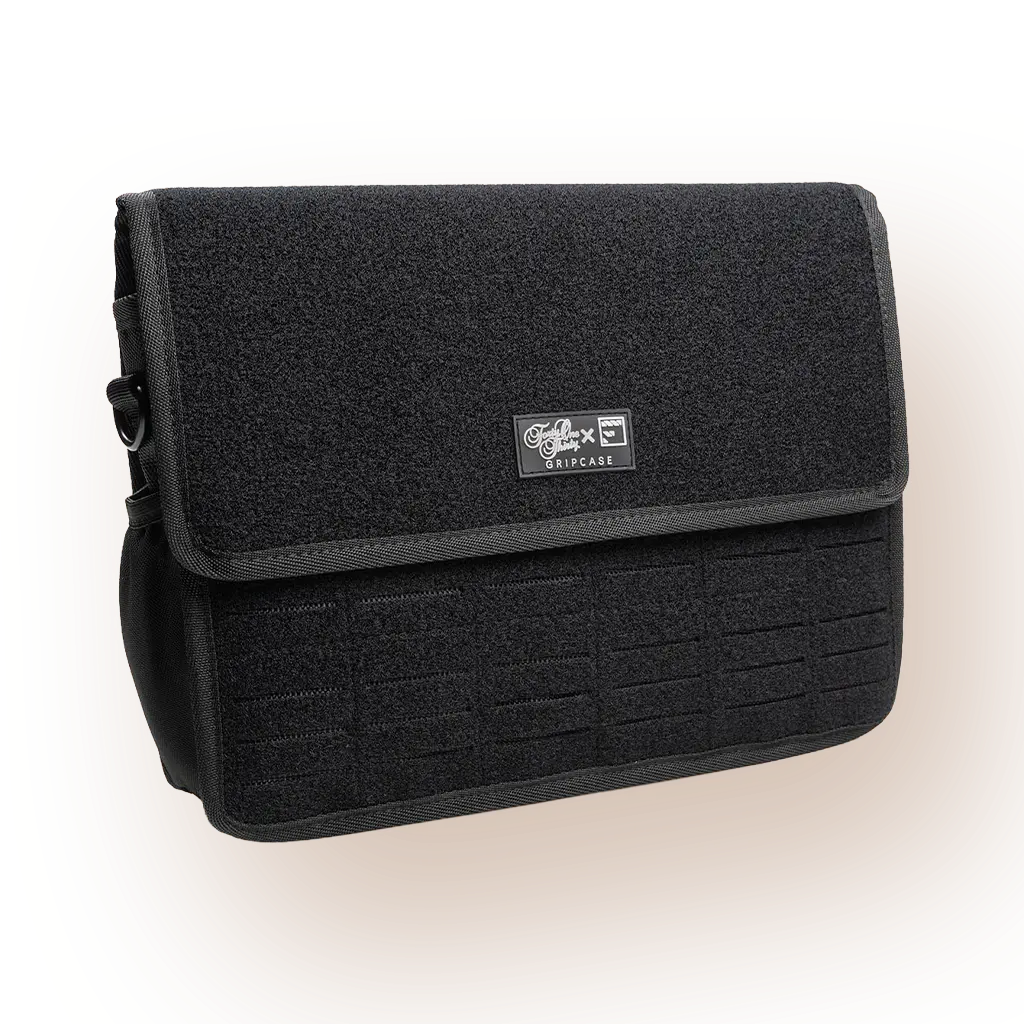

Gripcase Cover for TIMEBAR Timecode Slate

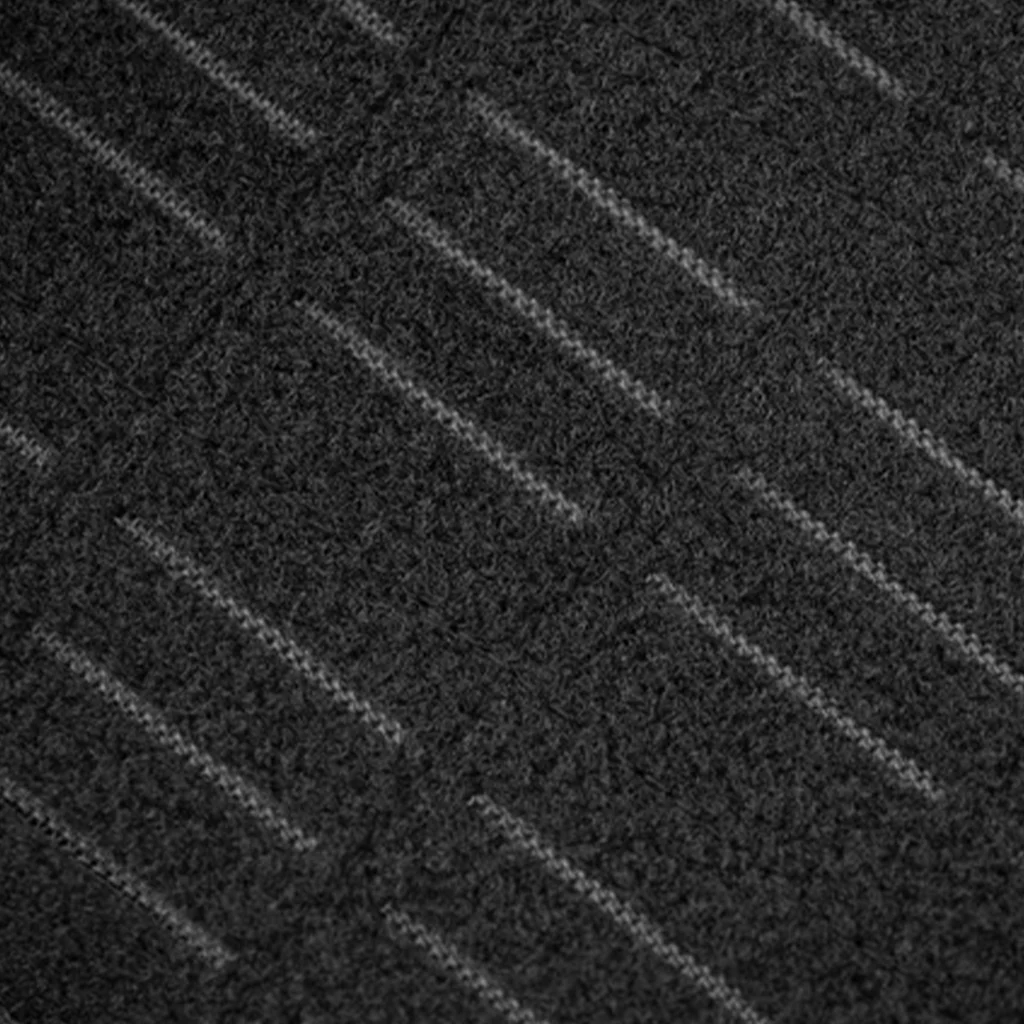

Material: | Durable, impact-resistant composite with reinforced stitching |
Dimensions: | 330 x 230 x 45 mm / 13 x 9.06 x 1.77 in |
Weight: | 394 g / 13.89 oz |

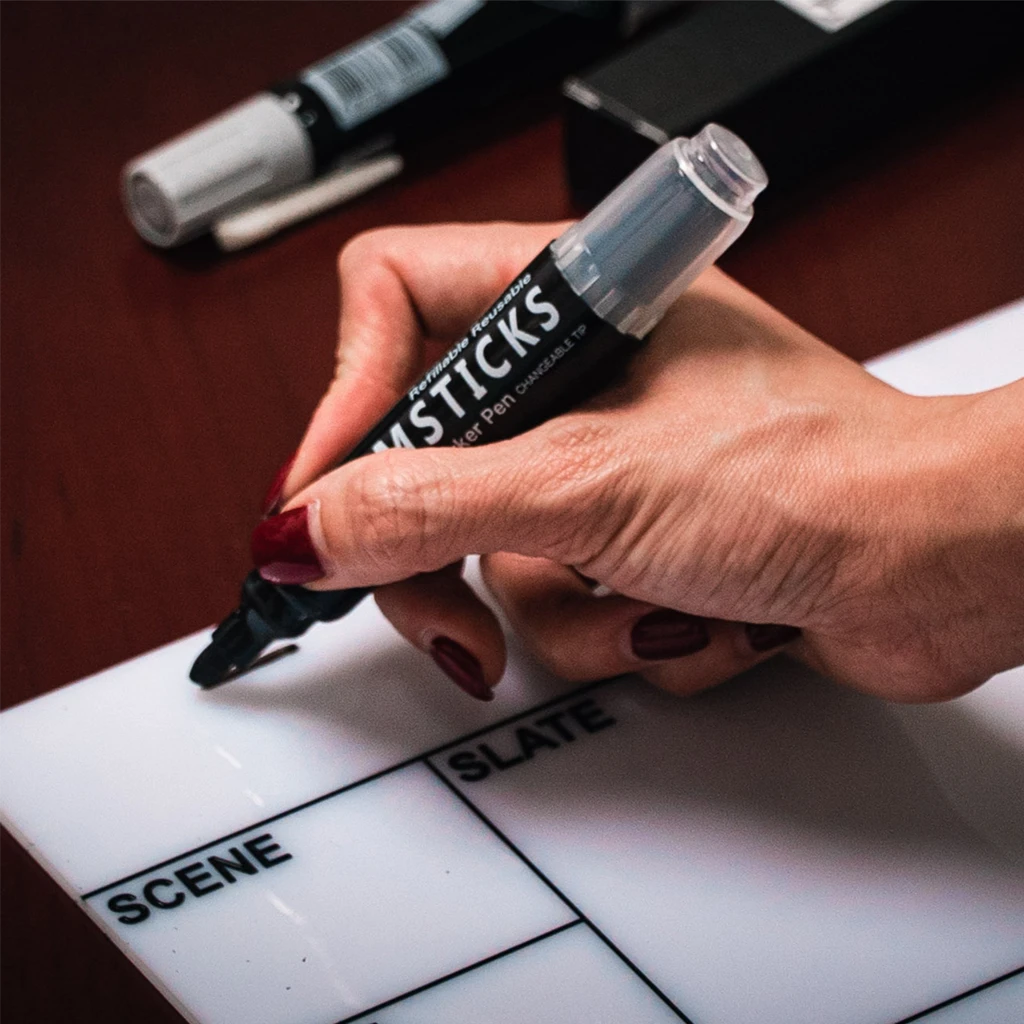

Boardmarker
Colour: | Black |

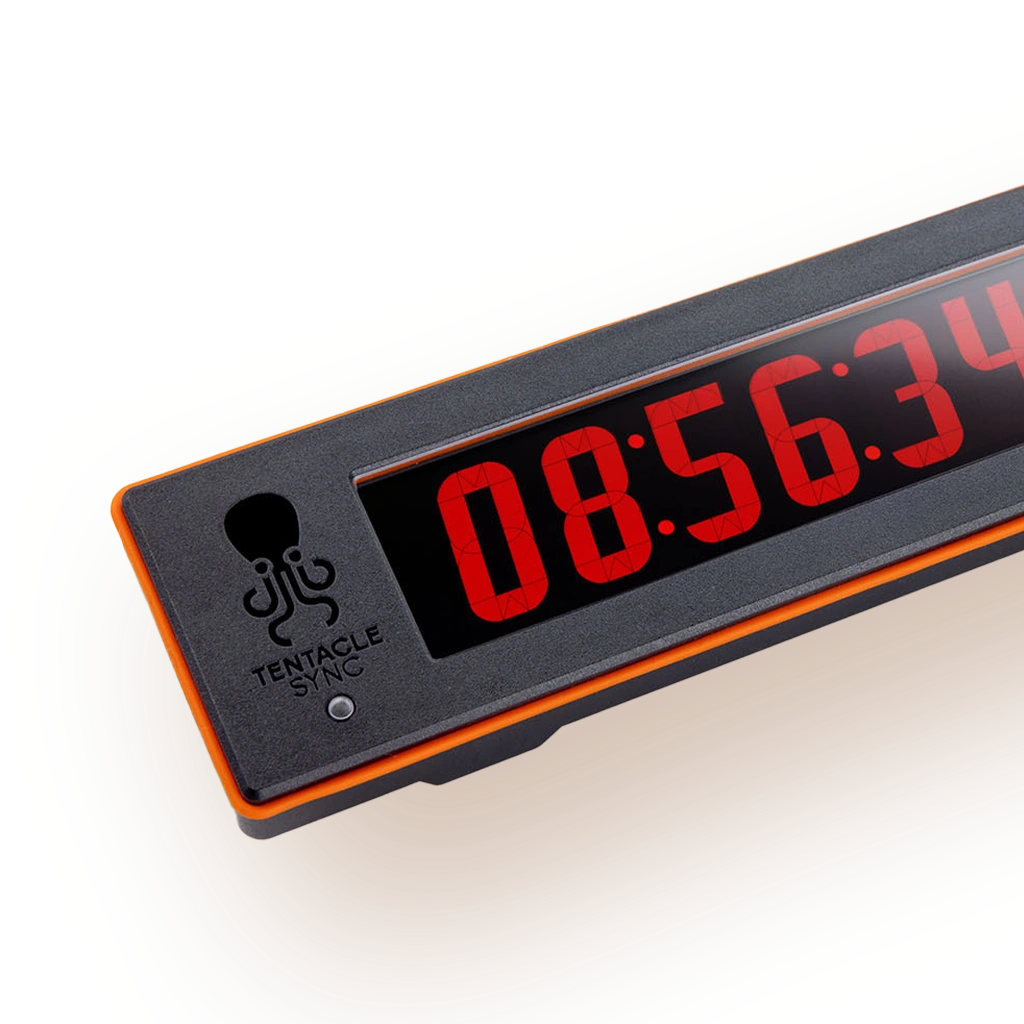

- 1 x TIMEBAR - Multipurpose Timecode Display
- 1 x Acrylic Board (280 x 190 x 5 mm / 11")
- 1 x Clapper Sticks
- 1 x TIMEBAR Holder/Mount
- 1 x 3.5 mm to Straight BNC Cable
- 1 x USB-A to USB-C Cable
- 1 x Zipper Bag Long
- 1 x Quickstart Guide
- 1 x Instructions for Activating One Software License (macOS) and User Manual
- 1 x 1.5 mm Hex Key
- 1 x 3 mm Hex Key
- 1 x Spare Grub Screw
- 1 x Aluminium Handle in Orange
- 2 x Screws to mount onto Timecode Slate
- 1 x Grip Case Cover for Slate and Accessories in Black incl. Logo Patch

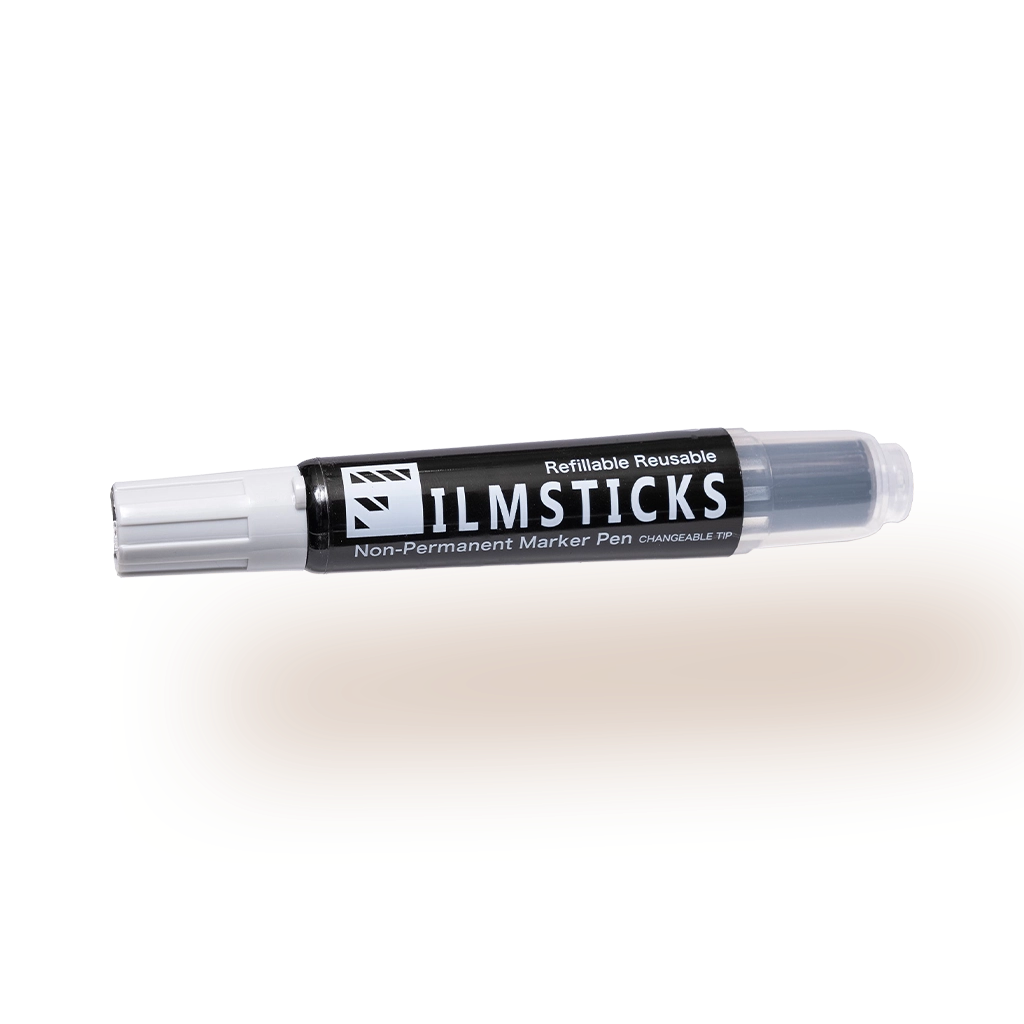

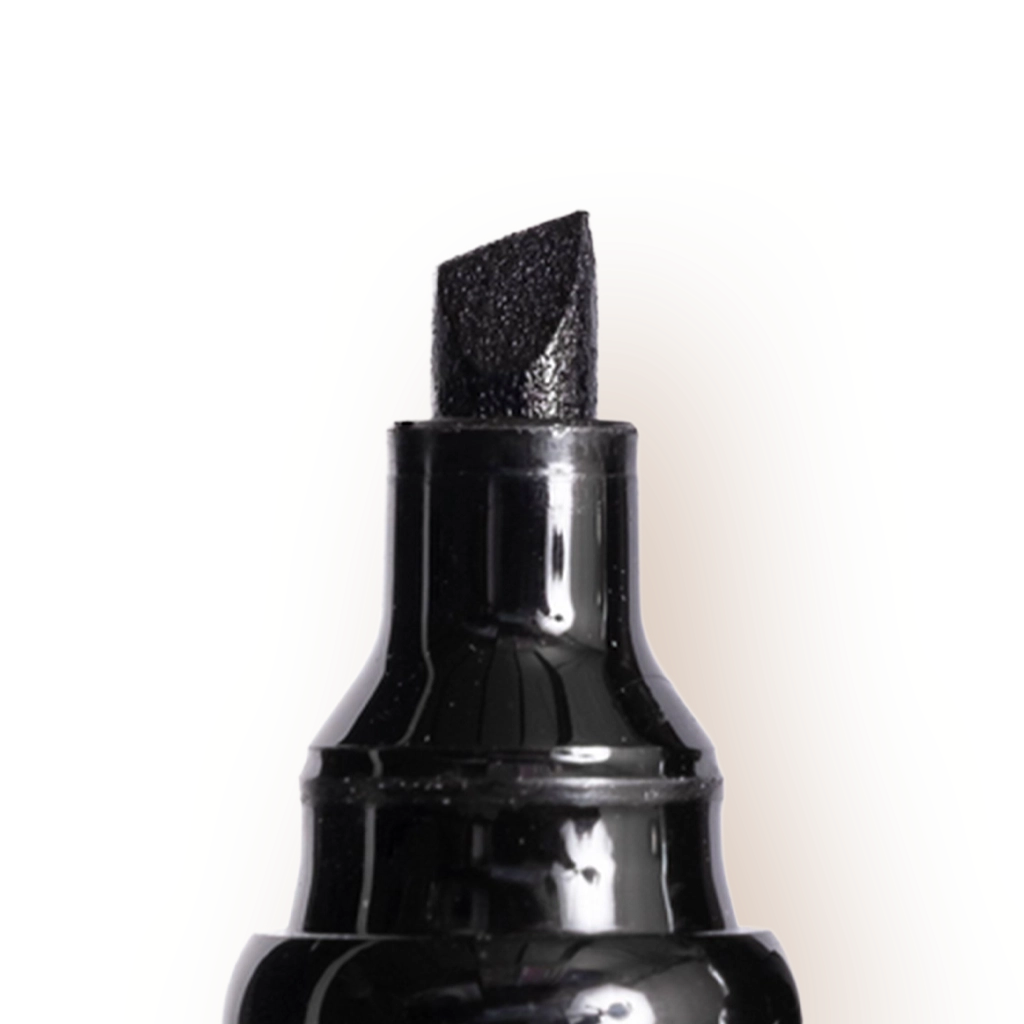

- 1 x Marker Pen, non-permanent and refillable
EAN Number:
4260452430138
Product Code:
TB1-SL-BDL
Country of Origin:
Germany
HS Code:
8543.70.90
