TRACK E – Pocket Audio Recorder – Basic Box

249,00

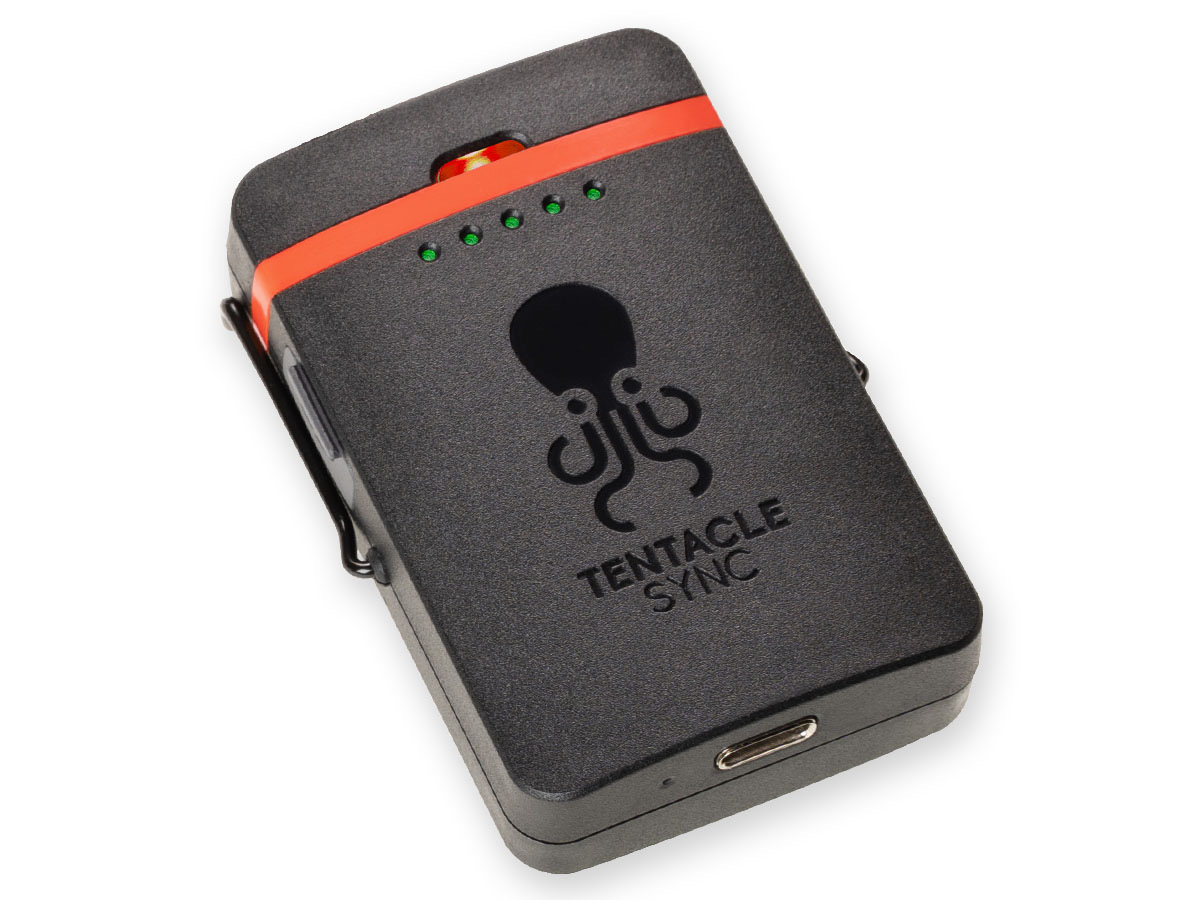

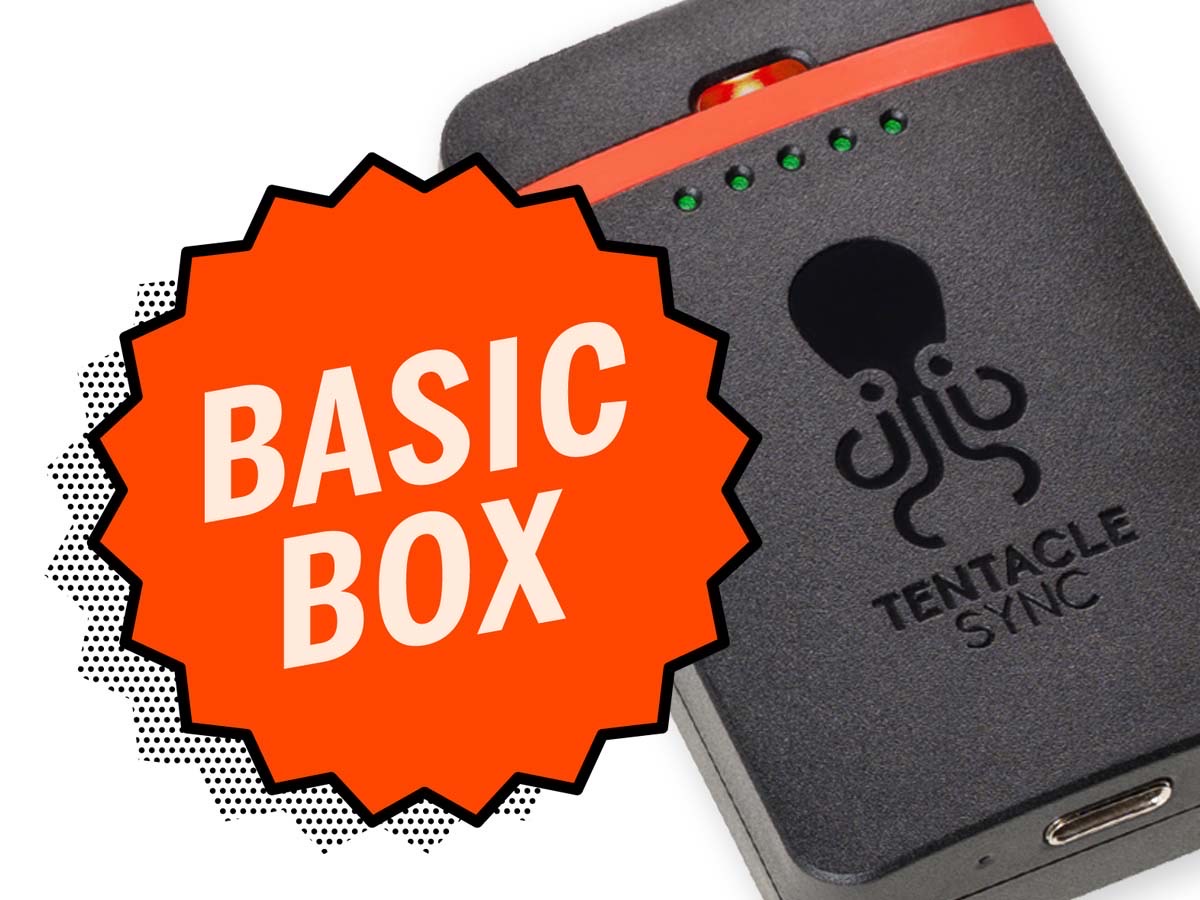

The TRACK E – Basic Box is for those, who already have all the accessories and high quality microphones, but need more TRACK E audio recorders for more multitrack possibilities. This TRACK E Basic Box is stripped down to its essentials: It contains one TRACK E Pocket Audio Recorder, a 16 GB microSD card, a belt clip and a charging cable. Nothing else…

For the full TRACK E Pocket Audio recorder set with everything you need to get started see our TRACK E Timecode Audio Recorder.

Delivery time 1 week

SKU: TR1-B Category:

Description

The TRACK E Timecode Audio Recorder can easily fit in your pocket for recording on the go. This allows mobile operation for example as a recorder for a clip-on microphone eliminating the need for a radio-link. This means that the TRACK E will work in environments where regular wireless transmitter fail.

Controllable through the Setup App for iOS or Android, it seamless integrates into the Tentacle Sync eco system. The app lets you synchronize timecode and operate as many Tentacle devices as you need via Bluetooth. You can monitor audio wirelessly and will be notified immediately by the app if something doesn’t go as planned. For even more convenience, you can sync, start and stop your TRACK E devices from your Apple Watch.

TRACK E features 32-bit floating point technology for a significantly extended dynamic range. 32-bit floating point also means that no digital clipping will occur, making the TRACK E a versatile set-&-forget-device that will always deliver high quality audio. With the TRACK E users can treat audio in a similar way as photographers use the RAW camera photo format – all details can be adjusted in post production, significantly reducing the preparation time before you start shooting. In addition, regular 24-bit recording is supported as well.

The TRACK E uses its included 16 GB microSD card for recording. An input limiter and a high-pass filter guarantee for pristine recording quality. A 3.5 mm locking connector offers a secure connection for your microphone. In addition to wireless sync, TRACK E features standard SMPTE timecode input/output so you can also connect to other timecode devices. A free license of Tentacle Sync Studio (Mac) is included with every TRACK E purchase.

FEATURES

  • 32-bit Float Recording / 24-bit Recording
  • Control, Sync & Record up to Hundreds of Devices via Bluetooth® within Seconds
  • Wireless Audio Monitoring via Bluetooth®
  • Wireless Timecode Sync via Bluetooth®
  • Jam-Sync via Cable
  • Timecode In/Out
  • Push Notifications about Critical Battery States, Recording Errors and Low Remaining Recording Time
  • Minimum Battery Runtime 10 hours
  • 16 GB microSD Card included
  • Tentacle Sync Studio Software License included (macOS)
  • Two Year Limited Warranty
  • Designed and Manufactured in Germany

TECHNICAL SPECIFICATIONS

Recording

Number of Tracks: 1
Sampling Rate: 48 kHz
Recording Bit-Depth: 32-bit Float / 24-bit
Recording File Formats: WAV (BWF)
Recording Time: 30 hrs (24-bit) / 23 hrs (32-bit Float) with 16 GB Card
Storage Media: microSDHC Card up to 32 GB (Class 10)
Signal Processing: Low Cut Filter, Limiter (24-bit only)

Connectivity

Microphone Input: 3.5 mm Jack (screw lock)
Mic Plug-In Power: 5 V
Headphone Output: 3.5 mm Jack
USB Connection: USB-C (USB 2.0)
USB Modes: Charging, Card Reader, Firmware Update

Performance

Frequency Response: 20 Hz – 20 kHz
Gain Range: +6 to +46 dB
Dynamic Range: 110 dB typ
THD+N: ≤ -85 dB (0,05%)

Control & Sync

Bluetooth®: 5.2 Low Energy
Remote Control: Tentacle Setup App (iOS/Android)
Audio Monitoring: Wireless via Bluetooth® (Tentacle Setup App)
Control: Push Notifications via Bluetooth® (Tentacle Setup App)
Synchronization: Via Bluetooth® (Tentacle Setup App) or Jam-Sync via Cable
Timecode Input: LTC via Mic In
Timecode Output: LTC via Headphone Out
Frame Rates: SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF, 30

Power

Power Source: Built-in rechargeable Lithium Polymer Battery
Battery Capacity: 900 mAh
Battery Operation Time: min 10 hours
Battery Charging Time: max. 2 hours

Hardware

Mounting: Belt Clip (removable) – Black Powder-Coated Stainless Steel
Weight: 58 g / 2.1 oz
Dimensions: 47 x 68 x 19 mm / 1.85 x 2.67 x 0.74 inches

What’s in the Box?

  • 1 x Tentacle Sync TRACK E – Pocket Audio Recorder
  • 1 x 16 GB microSD card
  • 1 x Belt Clip made of Powder-Coated Stainless Steel in Black
  • 1 x USB-A to USB-C Charging Cable (USB 2.0)
  • 1 x Software License for Tentacle Sync Studio (macOS)

Recommended microSD Cards

Recommended are SanDisk/WD 8/16/32 GB or similar high-grade Class 10 SDHC up to 32 GB. We have tested the following cards:

  • SanDisk Edge 16/32 GB
  • SanDisk Ultra 16/32 GB
  • SanDisk Extreme 16/32 GB
  • SanDisk Extreme PRO 16/32 GB
  • WD Industrial 16/32 GB
  • WD Edge 16/32 GB

Additional information

Weight 0.103 kg
Dimensions 11.5 × 9.5 × 2.55 cm

Manuals

Here you can download our operating manual for the Tentacle TRACK E:
